OceanView Poseidon

The Poseidon is one of two available gyro stabilized systems. Poseidon uses a MEMS gyro which not only compensates for the vessels movement by maintaining a stable image on the screen it also provides a platform for additional features not available on other units or only available as optional extras.

Special features:

  • Radar (ARPA) & AIS (Automatic Identification System) Tracking
  • Colour LCD Touch Screen Controller & separate Joystick
    • Optional additional controllers

Standard features include:

  • Three independently viewable images
    • Thermal Imager for use in total darkness
    • Hi res 320 × 240 pixel
    • 9 Hz, 23° FOV (Optional 14° & 9° FOV)
  • Low-Lux (0.00015 lux) Camera for use in poor/low light
    • 10x optical zoom
  • Colour Daylight Camera
    • 312x zoom (26x optical & 12x digital)
  • “On screen” camera direction indicator
  • A quick release “docking station” mount
    • Easy service access
    • Makes sharing cameras between different vessels easy
  • “Switch” between White hot/Black hot polarity
  • 360° continuous pan and tilt range of 71° up and 75° down
  • IP Control (optional)
    • Check on your vessel from the comfort of your home or office.

The combination provides outstanding pictures in a variety of light and environmental conditions.

The benefits of being able to detect, observe and identify different types of activity and objects in total darkness, heavy rain, smoke, daylight, or in mixed/poor lighting conditions are vast.

Applications include use on Superyachts, work boats and commercial vessels for:

  • Navigation/Collision & Object Avoidance
  • Medium – to Long-Range Threat Detection
  • MOB, Search and Rescue (SAR)
  • Security/Law Enforcement – on board or on the dockside
  • Shared use between vessels (see information below on the quick release ‘docking station’)

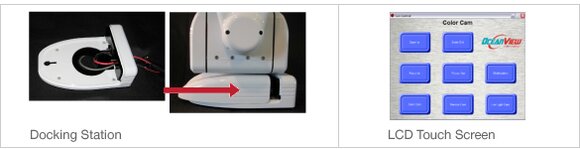

Unique to this industry, a quick release “docking station” makes sharing cameras between different vessels very easy, installation is even easier and in the unlikely event of on board service requiring a swap unit, can be quickly exchanged.

In addition to a simple Joystick controller for controlling the Pan and Tilt functions of the unit, Poseidon is supplied with an easy to navigate Pilothouse LCD Touch Screen Controller. It has full functionality with all the controls literally at your finger tips.

The pan & tilt camera head is remotely mounted and has a 360° pan view and +/-50° tilt range.

The Poseidon provides industry standard NTSC or PAL video output and the back lit controller is easily integrated into the bridges or control rooms of pleasure and commercial craft.

The Poseidon provides industry standard NTSC or PAL video output.

For Technical Information, click below to download the Poseidon Product Data Sheet.

  • Poseidon Specification Sheet
